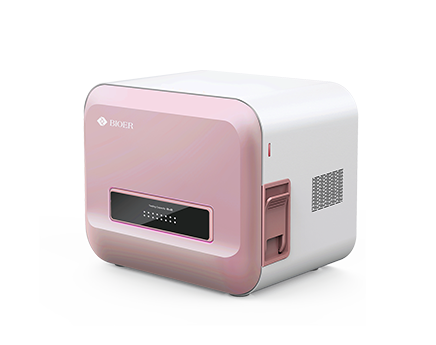

LineGene Mini is a portable real time PCR detection system developed by BIOER especially for applications in diversified and high-complicacy using environment. The product has adopted small-capacity design of single tubes and 8-strip tubes. In the meantime, customized Peltier module, brand-new light path design and top scanning have been adopted to build a new generation of BIOER fluorescence quantitative PCR. In spite of small size, the product can configure up to four detection channels and the detection performance can reach the equal level of a full-scale qPCR system.
As it is easy for transport and operation, LineGene Mini is suitable for real-time monitoring in pasture, forestry center, farm and water source, as well as for disaster-affected area or field hospital for quick and correct clinical diagnosis of disastrous situation and epidemic situation. Surely, it also facilitates transport and use among labs.

• Small size, big function:

  1. suitable for single tube and 8-strip tubes, 16 wells design, light weight and portable.

  2. Up to 4 targets multiplexing, florescence detection performance equivalent to a full-scale qPCR system.

  3. Brand-new heat dissipation module design, max. ramp rate up to 5℃/sec.

  4. Adopt unique temperature control technology, temperature control accuracy ±0.15℃.

  5. Customized Ferrotec TE module.

  6. Brand-new light path design ensures higher sensitivity and detecting stability.

  7. Detection sensitivity: down to one copy.

  8. Experiment program can be saved as template file, easier to set up new program.

  9. Software operation interface in China, easy and simple, quick learning


  10. Cover multiple analysis modes: qualitative/absolute quantitative, standard curve, melting curve, SNP analysis, and relative quantitative and isothermal amplification.


  11. Open system, verified by several reagents in the market.


  12.External power supply can deal with battery power supply and can be used in quick inspection vehicle and in field.
